Diaphragm walls
Contact persons
Watertight and stable solution for deep excavations
The diaphragm wall is ideally suited for deep excavation solutions and as a deep foundation element with a structural function. In the landfill area and for flood protection, we also use the diaphragm wall method for the construction of sealing walls.
Implementation

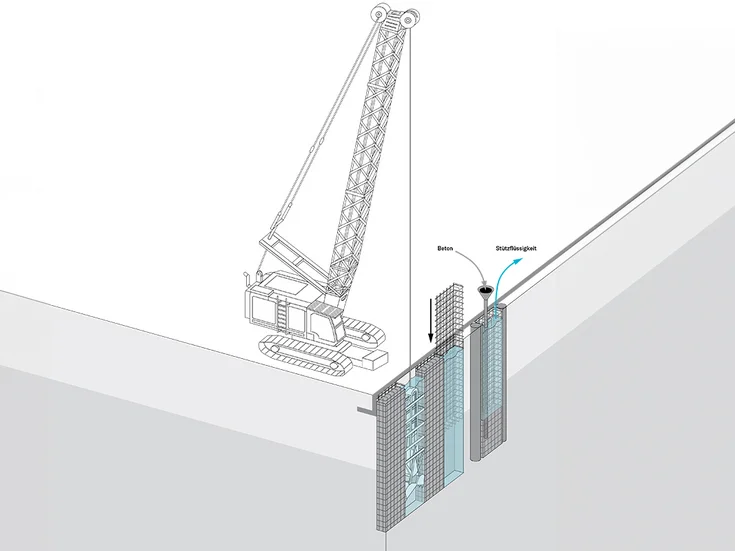

A rectangular slot is created in the ground by excavating the soil using the grab or milling method while simultaneously filling the supporting suspension. In further work steps, the reinforcement and a shuttering element are installed for the subsequent element and concrete is filled using the contractor method. A technically tight wall is created by lining up individual elements.
Examinations
- Position, torsion and verticality of the slotted lamella using inclinometer, ultrasonic measuring device

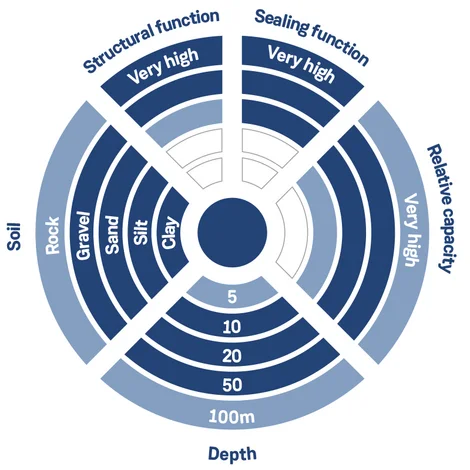

Applications
- Low-deformation excavation support, anchored or unanchored, technically watertight - especially for inner-city areas
- Deep foundation of buildings
- Sealing walls
Technical data
| Diaphragm wall thickness | 40/50/60/80/100/120/150/200 cm |
| Diaphragm wall depths of | up to 100 m |
| Grab openings | 2,80/3,20/3,60/4,20 |
| Milling width | 2,80 m |
| Cable excavator | up to 120 t |
Learn more about special foundation engineering processes
