Soil mixing method

Contact persons
Bodenmischverfahren

Environmentally friendly and economical
excavation support

We use the soil mixing method to produce vertical soil concrete columns in the ground. Soil mix columns are used as a deep foundation element and by overlapping the individual columns for sealing walls and excavation support.

Implementation

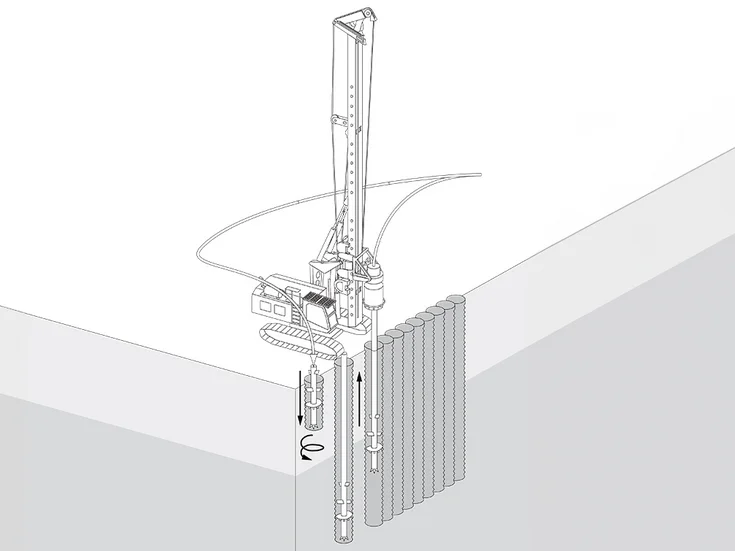

The in-situ soil is mixed with cement slurry or special mixtures using a guided mixing paddle to produce an earth concrete body. A continuous sealing wall is created by continuously lining up the earth concrete columns.

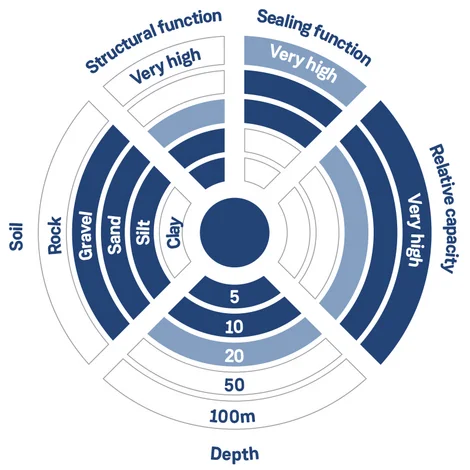

Bodenmischverfahren diagram EN

Examinations

  • Permeability
  • Compressive strength
  • Erosion resistance for sealing walls

Applications

  • Excavation support in city centre areas with or without sealing effect
  • Sealing walls as part of flood protection projects
  • Production of foundation bodies
  • Strengthening of moderately load-bearing soils
  • Sealing off landfills and contaminated sites (in-situ immobilisation)
  • Sealing of earth dams with or without statical effect

Technical data

Column diameter50 to 80 cm
Drilling depthsup to 16 m
Compressive strength2 to 10 N/mm² (usual values depending on soil conditions)
Permeability10^8 to 10^9 m/s
Levellersup to 100 t

Learn more about special foundation engineering processes
